Pull Through Image Cache

How to set up local transparent container images caches.

In this guide we will create a set of local caching Docker registry proxies to minimize local cluster startup time.

When running Talos locally, pulling images from container registries might take a significant amount of time. We spin up local caching pass-through registries to cache images and configure a local Talos cluster to use those proxies. A similar approach might be used to run Talos in production in air-gapped environments. It can be also used to verify that all the images are available in local registries.

Video Walkthrough

To see a live demo of this writeup, see the video below:

Requirements

The follow are requirements for creating the set of caching proxies:

  • Docker 18.03 or greater
  • Local cluster requirements for either docker or QEMU.

Launch the Caching Docker Registry Proxies

Talos pulls from docker.io, registry.k8s.io, gcr.io, and ghcr.io by default. If your configuration is different, you might need to modify the commands below:

docker run -d -p 5000:5000 \
    -e REGISTRY_PROXY_REMOTEURL=https://registry-1.docker.io \
    --restart always \
    --name registry-docker.io registry:2

docker run -d -p 5001:5000 \
    -e REGISTRY_PROXY_REMOTEURL=https://registry.k8s.io \
    --restart always \
    --name registry-registry.k8s.io registry:2

docker run -d -p 5003:5000 \
    -e REGISTRY_PROXY_REMOTEURL=https://gcr.io \
    --restart always \
    --name registry-gcr.io registry:2

docker run -d -p 5004:5000 \
    -e REGISTRY_PROXY_REMOTEURL=https://ghcr.io \
    --restart always \
    --name registry-ghcr.io registry:2

Note: Proxies are started as docker containers, and they’re automatically configured to start with Docker daemon.

As a registry container can only handle a single upstream Docker registry, we launch a container per upstream, each on its own host port (5000, 5001, 5002, 5003 and 5004).

Using Caching Registries with QEMU Local Cluster

With a QEMU local cluster, a bridge interface is created on the host. As registry containers expose their ports on the host, we can use bridge IP to direct proxy requests.

sudo talosctl cluster create --provisioner qemu \
    --registry-mirror docker.io=http://10.5.0.1:5000 \
    --registry-mirror registry.k8s.io=http://10.5.0.1:5001 \
    --registry-mirror gcr.io=http://10.5.0.1:5003 \
    --registry-mirror ghcr.io=http://10.5.0.1:5004

The Talos local cluster should now start pulling via caching registries. This can be verified via registry logs, e.g. docker logs -f registry-docker.io. The first time cluster boots, images are pulled and cached, so next cluster boot should be much faster.

Note: 10.5.0.1 is a bridge IP with default network (10.5.0.0/24), if using custom --cidr, value should be adjusted accordingly.

Using Caching Registries with docker Local Cluster

With a docker local cluster we can use docker bridge IP, default value for that IP is 172.17.0.1. On Linux, the docker bridge address can be inspected with ip addr show docker0.

talosctl cluster create --provisioner docker \
    --registry-mirror docker.io=http://172.17.0.1:5000 \
    --registry-mirror registry.k8s.io=http://172.17.0.1:5001 \
    --registry-mirror gcr.io=http://172.17.0.1:5003 \
    --registry-mirror ghcr.io=http://172.17.0.1:5004

Machine Configuration

The caching registries can be configured via machine configuration patch, equivalent to the command line flags above:

machine:
  registries:
    mirrors:
      docker.io:
        endpoints:
          - http://10.5.0.1:5000
      gcr.io:
        endpoints:
          - http://10.5.0.1:5003
      ghcr.io:
        endpoints:
          - http://10.5.0.1:5004
      registry.k8s.io:
        endpoints:
          - http://10.5.0.1:5001

Cleaning Up

To cleanup, run:

docker rm -f registry-docker.io
docker rm -f registry-registry.k8s.io
docker rm -f registry-gcr.io
docker rm -f registry-ghcr.io

Note: Removing docker registry containers also removes the image cache. So if you plan to use caching registries, keep the containers running.

Using Harbor as a Caching Registry

Harbor is an open source container registry that can be used as a caching proxy. Harbor supports configuring multiple upstream registries, so it can be used to cache multiple registries at once behind a single endpoint.

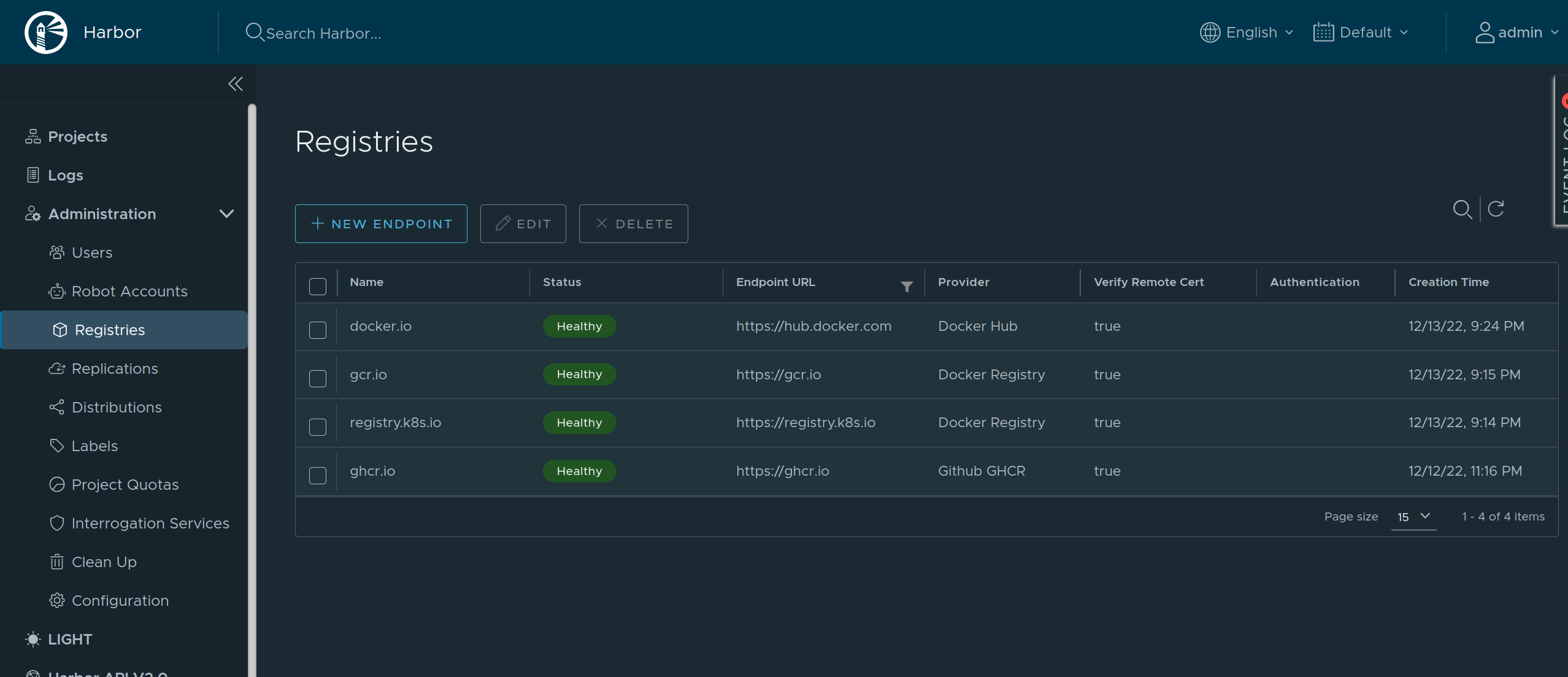

Harbor Endpoints

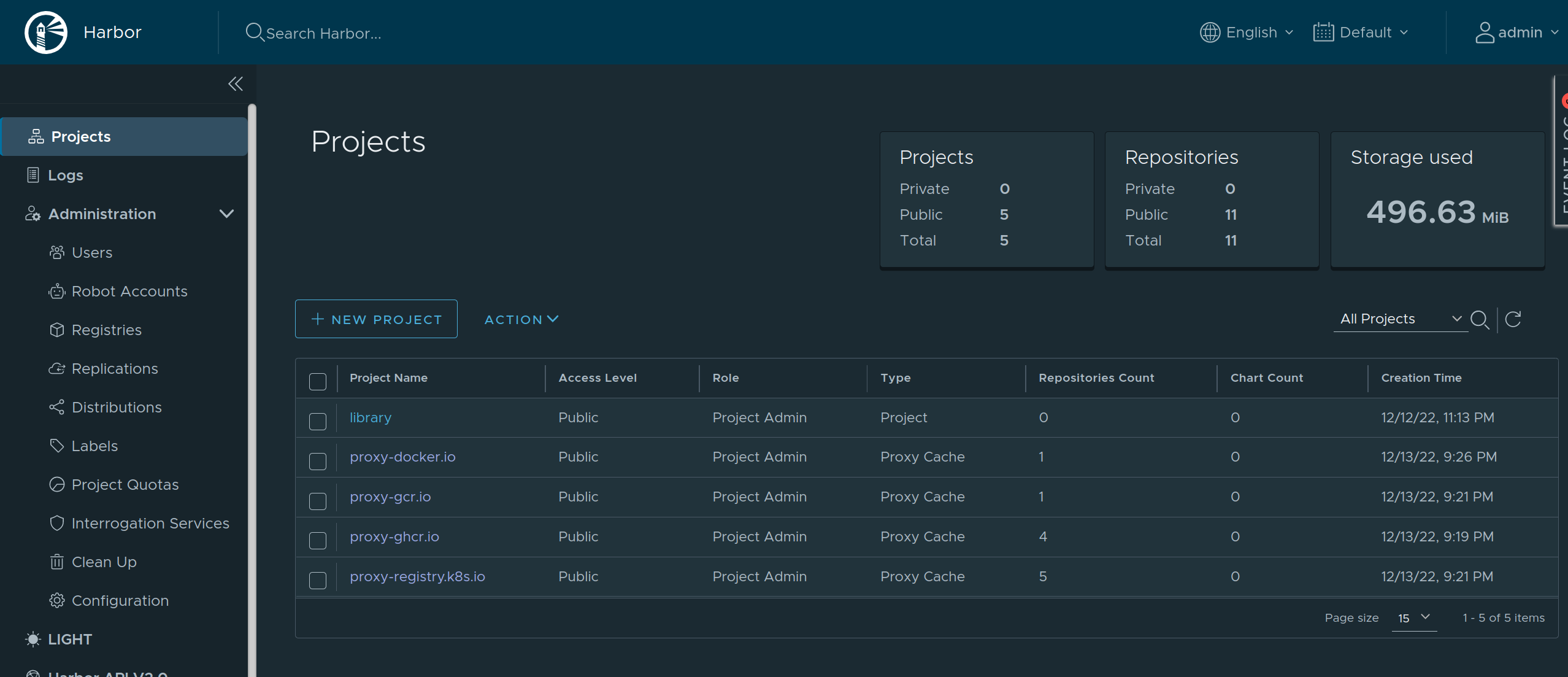

Harbor Projects

As Harbor puts a registry name in the pull image path, we need to set overridePath: true to prevent Talos and containerd from appending /v2 to the path.

machine:
  registries:
    mirrors:
      docker.io:
        endpoints:
          - http://harbor/v2/proxy-docker.io
        overridePath: true
      ghcr.io:
        endpoints:
          - http://harbor/v2/proxy-ghcr.io
        overridePath: true
      gcr.io:
        endpoints:
          - http://harbor/v2/proxy-gcr.io
        overridePath: true
      registry.k8s.io:
        endpoints:
          - http://harbor/v2/proxy-registry.k8s.io
        overridePath: true

The Harbor external endpoint (http://harbor in this example) can be configured with authentication or custom TLS:

machine:
  registries:
    config:
      harbor:
        auth:
          username: admin
          password: password
